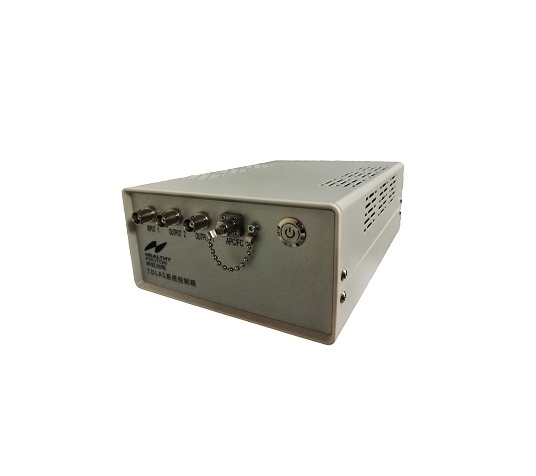

HealthyPhoton’s TDLAS Integrated Controller includes core modules such as a laser bias current driver, TEC temperature control, heatsink, signal modulation, and lock-in demodulation. All the TDLAS parameters can be set on a PC-based user interface through a USB cable.
The wavelength modulated laser for detecting specific gas molecule is guided by the optical fiber to the FC/APC port. Laser beam collimation is needed in order to let the beam pass through the gas sample with a path-length (either inside a gas absorption cell or an open-path environment) and is received by a photodetector. The voltage signal output from the photodetector is connected back to the TDLAS controller via the coaxial cable for lock-in harmonic demodulation. The result spectral is output through the BNC analog port on the front panel or uploaded to the PC via the USB cable.
|
Supported laser package |
14pin butterfly package |
|
LD drive current |
0 ~ 250mA |
|
TEC temperature range |
10 ~ 50 °C |
|
Fiber connector type |
FC/APC |
|
Photodetector input port |
Standard BNC female (CH1) |
|
Lock-in analog demodulation output port |
Standard BNC female (CH2/CH3) |
|
PC connection port |
USB (Type B) |
|
Dimension (L*W*H) |
170x240x80mm3 |
|
Power supply (max) |
15W (DC: 5V-3A) |
|
Operation temperature |
0 - 60 °C |
|
Weight |
~2000g |
